GlitchGAN — GravitySpy Classification

Standalone classification notebook. Injection pipeline follows evaluation2.ipynb exactly.

Dependencies

This notebook requires GravitySpy. Install it and its runtime deps, then apply three small patches for Python 3.11 / keras 3.x compatibility:

pip install "glitchgan[eval]"              # core deps + gravityspy runtime deps
pip install gravityspy==1.0.0 --no-deps    # gravityspy (skip broken scipy pin)

Then patch three incompatibilities:

import site, pathlib
sp = pathlib.Path(site.getsitepackages()[0]) / 'gravityspy'

# Fix 1: scipy.misc.imresize removed in scipy 1.3
f = sp / 'ml/labelling_test_glitches.py'
txt = f.read_text()
txt = txt.replace('from scipy.misc import imresize',
                  'from skimage.transform import resize as imresize')
# Fix 2: keras 3.x loads old .h5 models incorrectly — use tf_keras (legacy keras 2.x)
txt = txt.replace('from keras.applications.vgg16 import preprocess_input',
                  'from tf_keras.applications.vgg16 import preprocess_input')
txt = txt.replace('from keras.models import load_model',
                  'from tf_keras.models import load_model')
txt = txt.replace('from keras import backend as K',
                  'from tf_keras import backend as K')
f.write_text(txt)

# Fix 3: gwpy 4.0 rejects bare truthiness checks on TimeSeries
f = sp / 'utils/utils.py'
f.write_text(f.read_text().replace(
    '    if timeseries:\n',
    '    if timeseries is not None:\n'))

print('All patches applied')

import os, sys, io, shutil, warnings, logging
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from pathlib import Path
from tqdm.notebook import tqdm
from IPython.display import Image as IPyImage, display as ipy_display

PROJECT_ROOT = Path('..').resolve()
sys.path.insert(0, str(PROJECT_ROOT / 'src'))

from glitchgan.tf import GlitchGAN
from glitchgan.tf.model_components import ArgmaxLayer, ReduceSumDotLayer
from glitchgan.utils import whitened_snr_scaling

# ── paths ─────────────────────────────────────────────────────────────────────
DATA_DIR       = PROJECT_ROOT / 'data'
PLOTS_DIR      = PROJECT_ROOT / 'evaluation_plots'
GENERATOR_PATH = PROJECT_ROOT / 'weights' / 'tensorflow' / 'generator_210_keras3.keras'
PATH_TO_MODEL  = PROJECT_ROOT / 'models' / 'sidd-cqg-paper-O3-model.h5'
#FIXME: set your local GravitySpy clone path
PATH_TO_REPO   = '/path/to/GravitySpy/'

os.makedirs(PLOTS_DIR, exist_ok=True)

# ── glitch classes ────────────────────────────────────────────────────────────
LABEL_ORDER = [
    'Blip', 'Fast_Scattering', 'Koi_Fish',
    'Low_Frequency_Burst', 'Scattered_Light', 'Tomte', 'Whistle',
]
NUM_CLASSES = len(LABEL_ORDER)
NOISE_DIM   = 100

# ── GravitySpy noise / classification config ─────────────────────────────────
IFO            = 'H1'
SRATE          = 4096
GW_START, GW_END = 1262540000, 1262540040
CHANNEL        = f'{IFO}:GDS-CALIB_STRAIN'
INIT_TIME      = -20
EVENT_TIME     = 0
SNR_TARGET     = 50
NUM_CLASSIFY   = 100

print('Project root :', PROJECT_ROOT)
print('Model exists :', PATH_TO_MODEL.exists())

Project root : /Users/tomdooney/Documents/Work/Projects/glitchgan
Model exists : True

glitch_classes = ['Blip', 'Fast_Scattering', 'Koi_Fish', 'Low_Frequency_Burst', 'Scattered_Light', 'Tomte', 'Whistle']

data_o3a = pd.read_csv('/Users/tomdooney/Documents/Work/Projects/old_repo/deepextractor/data_o3a_high_confidence.csv')
data_o3b = pd.read_csv('/Users/tomdooney/Documents/Work/Projects/old_repo/deepextractor/data_o3b_high_confidence.csv')

data_o3 = pd.concat([data_o3a, data_o3b], ignore_index=True)
data_o3_snr = data_o3[data_o3['snr'] >= 15]
data_o3_snr.head()

	Unnamed: 0	GPStime	peakFreq	snr	amplitude	centralFreq	duration	bandwidth	chisq	chisqDof	confidence	id	ifo	label	imgUrl	Q-value
0	0	1.239157e+09	62.976	19989.938	2.580000e-19	3983.241	13.524	7934.48291	0.0	0.0	1.0	R7q36rPK5J	V1	Extremely_Loud	https://ldas-jobs.ligo.caltech.edu/~gravityspy...	11.314
1	1	1.252630e+09	30.734	14050.200	1.730000e-19	3980.241	8.250	7940.48291	0.0	0.0	1.0	xg6I5indL7	L1	Extremely_Loud	https://ldas-jobs.ligo-la.caltech.edu/~gravity...	11.314
2	2	1.242889e+09	39.789	12802.310	1.020000e-19	3980.241	10.669	7940.48291	0.0	0.0	1.0	puprGzhePt	L1	Extremely_Loud	https://ldas-jobs.ligo-la.caltech.edu/~gravity...	11.314
3	3	1.243172e+09	39.789	12470.565	1.030000e-19	3980.241	7.875	7940.48291	0.0	0.0	1.0	wVuUvshkGV	L1	Extremely_Loud	https://ldas-jobs.ligo-la.caltech.edu/~gravity...	11.314
4	4	1.248612e+09	30.734	11933.828	2.330000e-19	3980.241	13.000	7940.48291	0.0	0.0	1.0	RcVMzIZSn3	H1	Extremely_Loud	https://ldas-jobs.ligo-wa.caltech.edu/~gravity...	11.314

mean_snrs = {}
for glitch_class in glitch_classes:
    class_data = data_o3_snr[data_o3_snr['label'] == glitch_class]
    mean_snrs[glitch_class] = class_data['snr'].mean()

mean_snrs

{'Blip': np.float64(29.808257138030072),
 'Fast_Scattering': np.float64(36.42263026556777),
 'Koi_Fish': np.float64(187.2340418864253),
 'Low_Frequency_Burst': np.float64(40.27854119850188),
 'Scattered_Light': np.float64(31.505926677090315),
 'Tomte': np.float64(25.386182735042738),
 'Whistle': np.float64(27.135531966071657)}

import keras

gan = GlitchGAN()
gan.generator = keras.models.load_model(
    str(GENERATOR_PATH), compile=False,
    custom_objects={'ArgmaxLayer': ArgmaxLayer, 'ReduceSumDotLayer': ReduceSumDotLayer}
)
print(f'Loaded: {GENERATOR_PATH.name}')

Loaded: generator_210_keras3.keras

import time
# Generate signals — same approach as evaluation2: explicit np.eye class vectors,
# np.random.randn noise, no fixed seed
class_vecs = np.repeat(np.eye(NUM_CLASSES, dtype='float32'), NUM_CLASSIFY, axis=0)
noise_vecs = np.random.randn(NUM_CLASSES * NUM_CLASSIFY, NOISE_DIM).astype('float32')

t0 = time.time()
generated_signals = gan.generator([noise_vecs, class_vecs], training=False).numpy()
t1 = time.time()
print(f'Generated {generated_signals.shape[0]} signals in {t1 - t0:.2f} seconds')
labels            = np.repeat(np.array(LABEL_ORDER), NUM_CLASSIFY)

print(f'generated_signals: {generated_signals.shape}')
print(f'labels           : {labels.shape}')

Generated 700 signals in 15.23 seconds
generated_signals: (700, 8192)
labels           : (700,)

import time
# Generate signals — same approach as evaluation2: explicit np.eye class vectors,
# np.random.randn noise, no fixed seed
class_vecs = np.repeat(np.eye(NUM_CLASSES, dtype='float32'), NUM_CLASSIFY, axis=0)
noise_vecs = np.random.randn(NUM_CLASSES * NUM_CLASSIFY, NOISE_DIM).astype('float32')

t0 = time.time()
generated_signals = gan.generator([noise_vecs, class_vecs], training=False).numpy()
t1 = time.time()
print(f'Generated {generated_signals.shape[0]} signals in {t1 - t0:.2f} seconds')
labels            = np.repeat(np.array(LABEL_ORDER), NUM_CLASSIFY)

print(f'generated_signals: {generated_signals.shape}')
print(f'labels           : {labaels.shape}')

N = 1000
random_class_idx = np.random.randint(0, NUM_CLASSES, size=N)
class_vecs = np.eye(NUM_CLASSES, dtype='float32')[random_class_idx]
noise_vecs = np.random.randn(N, NOISE_DIM).astype('float32')

t0 = time.time()
generated_signals = gan.generator([noise_vecs, class_vecs], training=False).numpy()
t1 = time.time()

labels = np.array(LABEL_ORDER)[random_class_idx]
print(f'generated_signals: {generated_signals.shape}')

generated_signals: (1000, 8192)

print(f'Generated {generated_signals.shape[0]} signals in {t1 - t0:.2f} seconds')

Generated 1000 signals in 21.83 seconds

GravitySpy Classification

Injection pipeline follows evaluation2.ipynb exactly: fresh noise fetch → to_pycbc() → whiten → pycbc copy → pycbc += → gwpy TimeSeries.

sys.path.insert(0, PATH_TO_REPO)

from gwpy.timeseries import TimeSeries
from gravityspy.classify import classify
import gravityspy.ml.labelling_test_glitches as _lgt

warnings.filterwarnings('ignore')
for _log in ['gravityspy', 'gwpy', 'astropy', 'tensorflow']:
    logging.getLogger(_log).setLevel(logging.ERROR)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '3'

GSPY_PLOT_DIR = str(PLOTS_DIR / 'gspy_tmp')


def classify_signals(generated_signals, labels, white_noise, noise, label_order, tag):
    """Classify GlitchGAN signals using GravitySpy.
    Injection follows evaluation2 exactly: pycbc copy → pycbc += → gwpy TimeSeries.
    """
    ifo          = IFO
    srate        = SRATE
    init_time    = INIT_TIME
    channel_name = CHANNEL
    path_to_model = str(PATH_TO_MODEL)
    snr_target   = SNR_TARGET

    shutil.rmtree(GSPY_PLOT_DIR, ignore_errors=True)
    os.makedirs(GSPY_PLOT_DIR, exist_ok=True)

    rows  = []
    total = NUM_CLASSIFY * len(label_order)
    with tqdm(total=total, desc=f'Classifying [{tag}]', unit='glitch') as pbar:
        for class_label in label_order:
            class_indices  = np.where(labels == class_label)[0]
            chosen_indices = np.random.choice(class_indices, NUM_CLASSIFY, replace=False)

            for idx in chosen_indices:
                glitch = generated_signals[idx].copy()
                glitch = whitened_snr_scaling(glitch, snr_target)

                len_glitch = len(glitch)
                length     = noise.shape[-1]
                t_inj      = 0.5 * length / srate
                id_start   = int((t_inj * srate / length) * len(white_noise)) - len_glitch // 2

                injected_noise = white_noise.copy()
                injected_noise[id_start:id_start + len_glitch] += glitch

                glitch_series = TimeSeries(
                    injected_noise, t0=init_time, sample_rate=srate, name=ifo
                )

                try:
                    result = classify(
                        event_time=EVENT_TIME,
                        channel_name=channel_name,
                        path_to_cnn=path_to_model,
                        timeseries=glitch_series,
                        plot_directory=GSPY_PLOT_DIR,
                    )
                    rows.append({
                        'true_label': class_label,
                        'pred_label': result['ml_label'].value[0],
                        'confidence': result['ml_confidence'].value[0],
                    })
                except Exception as e:
                    print(f'  \u26a0 {class_label}[{idx}]: {type(e).__name__}: {e}')
                    rows.append({'true_label': class_label, 'pred_label': 'Error', 'confidence': 0.0})
                pbar.update(1)

    return pd.DataFrame(rows)

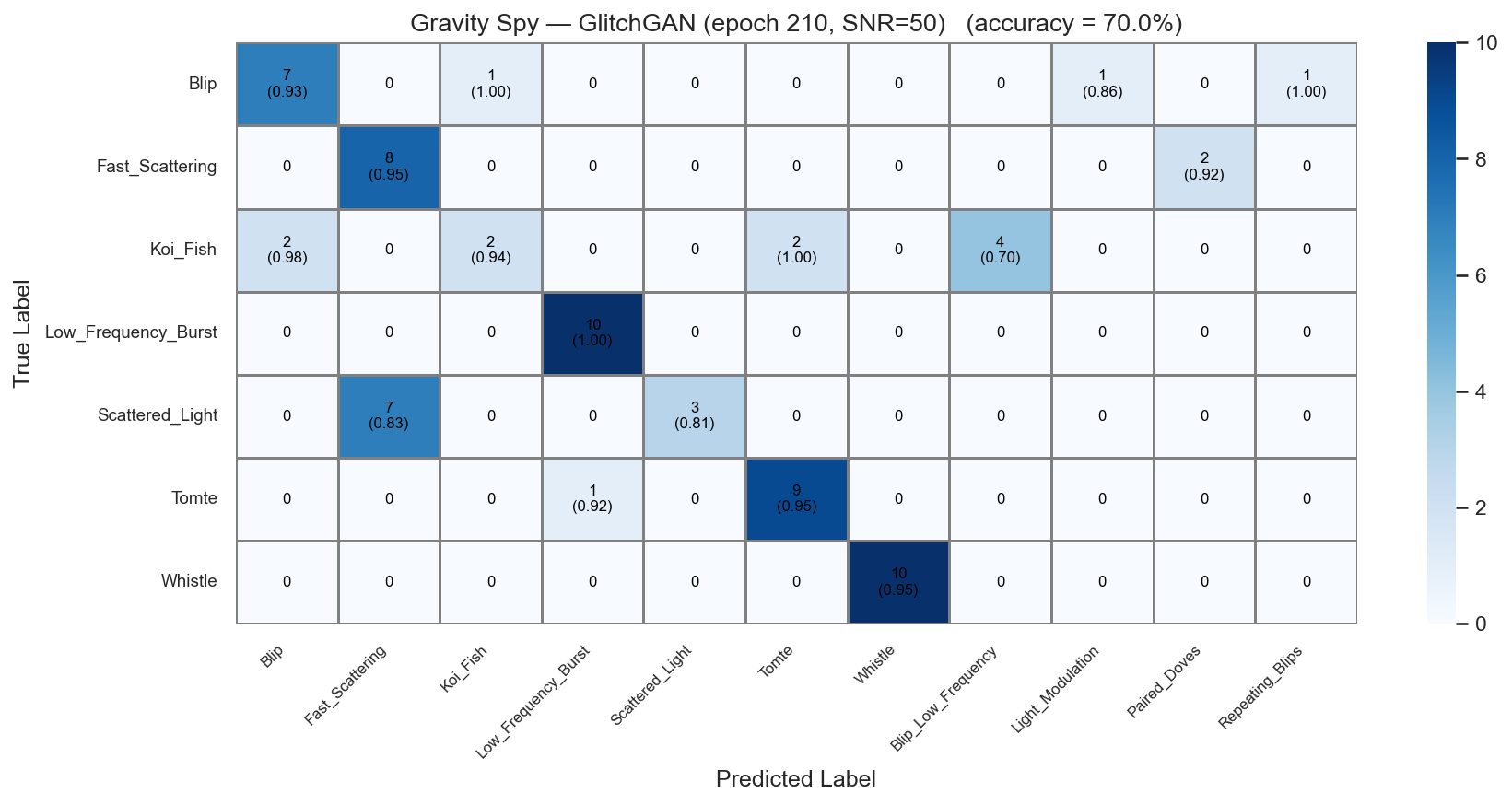

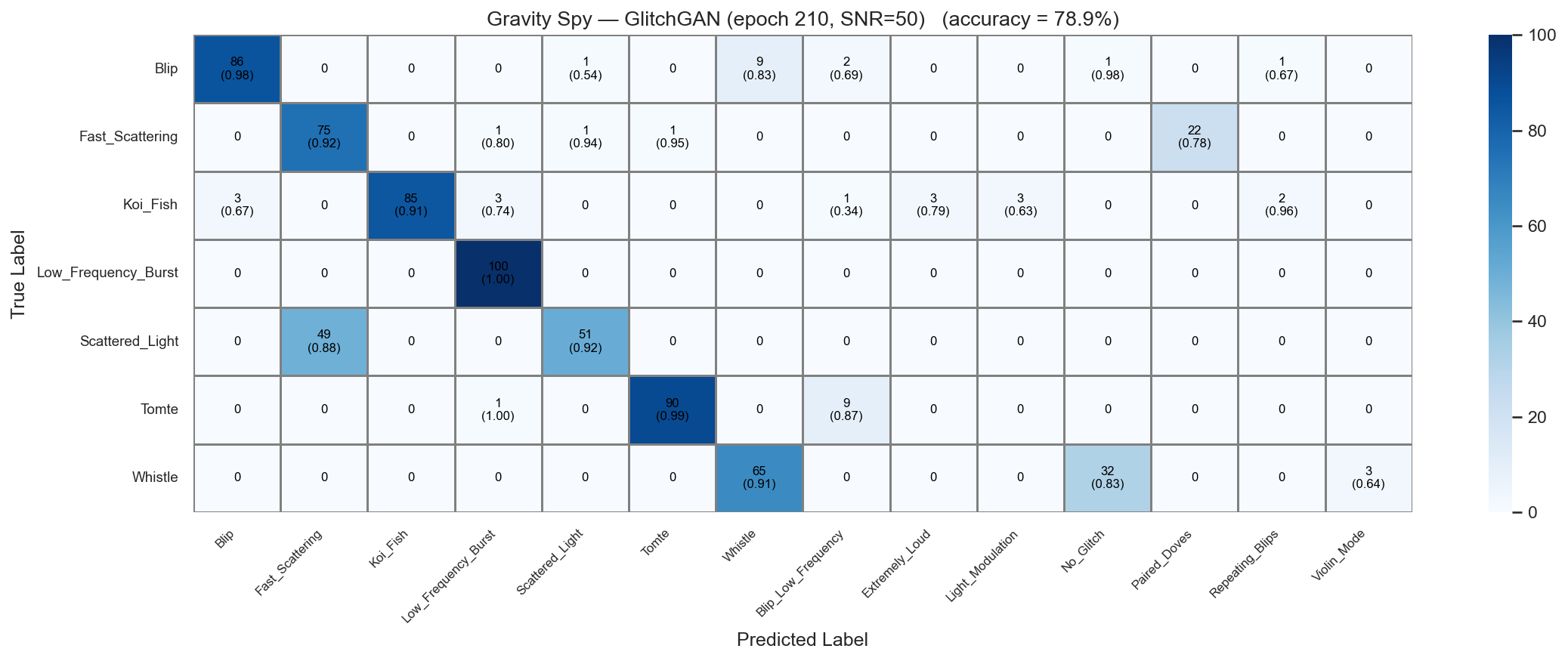

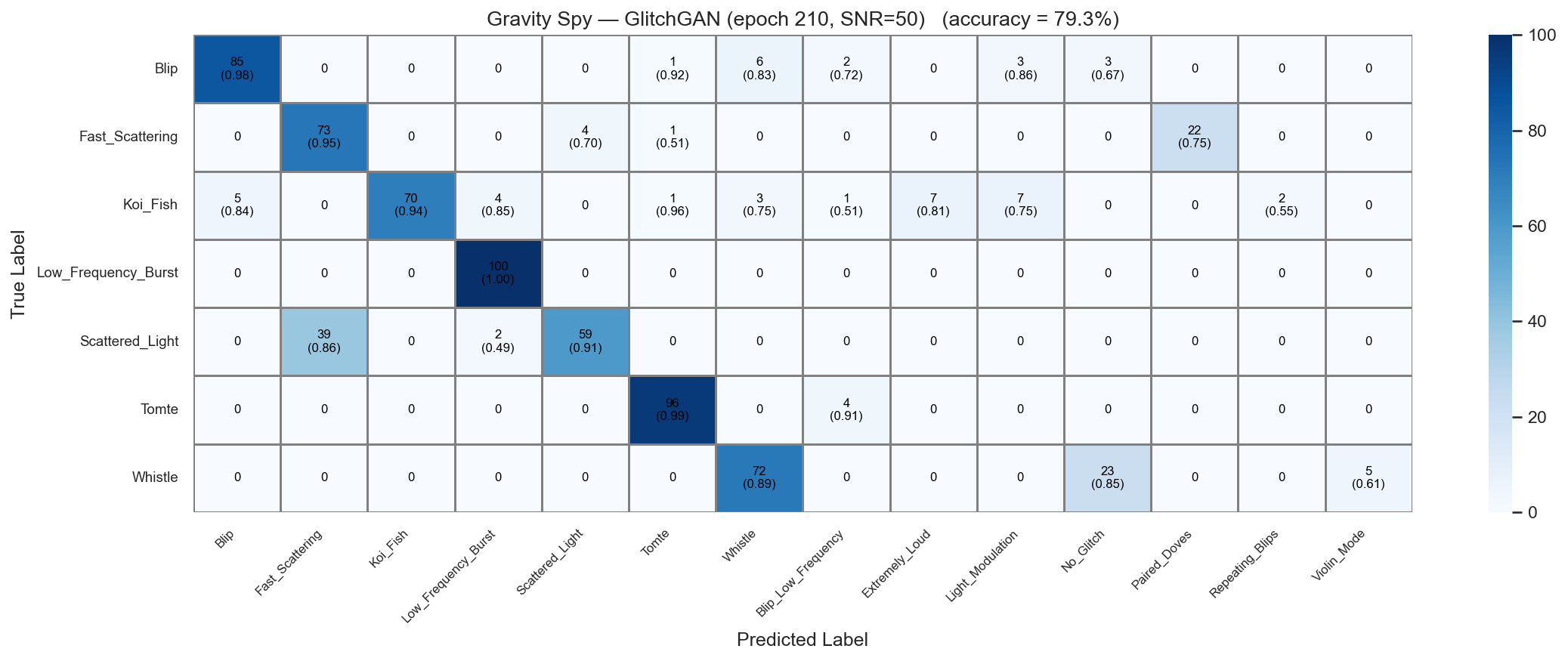

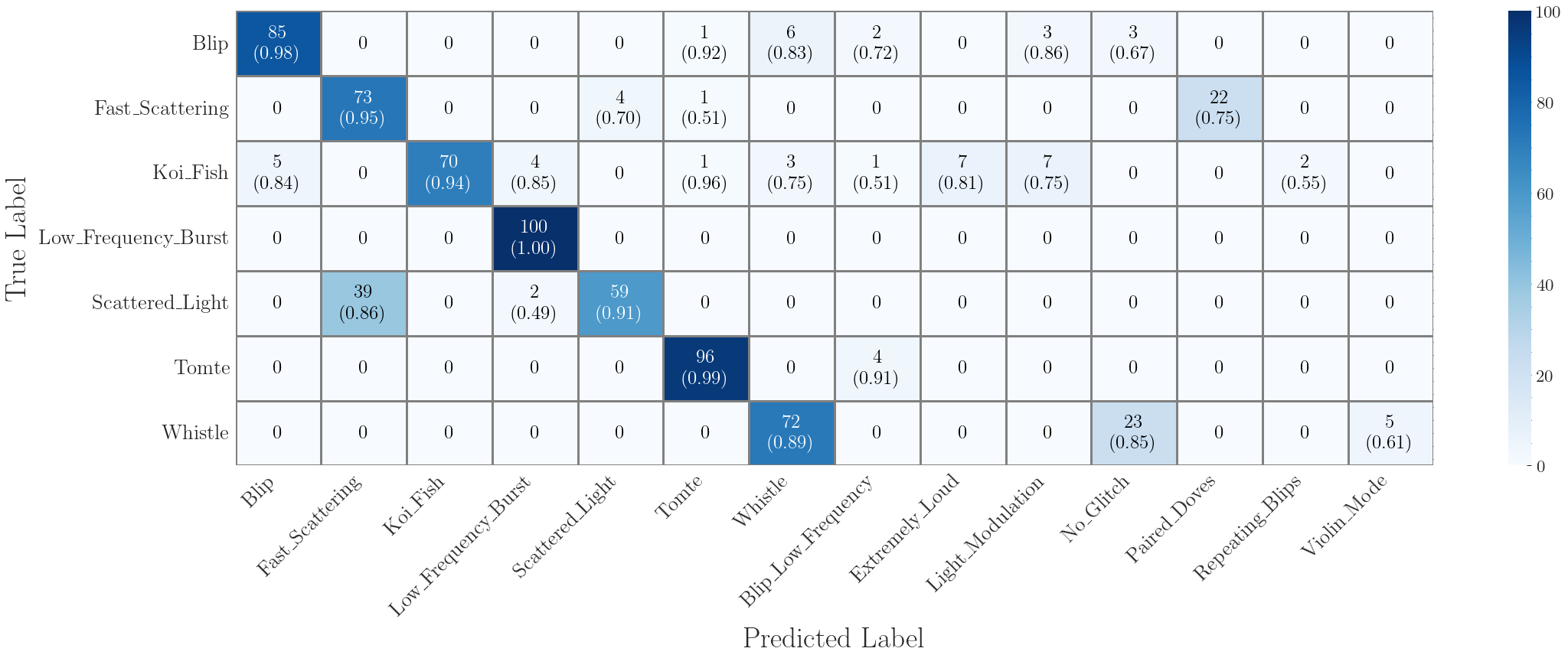

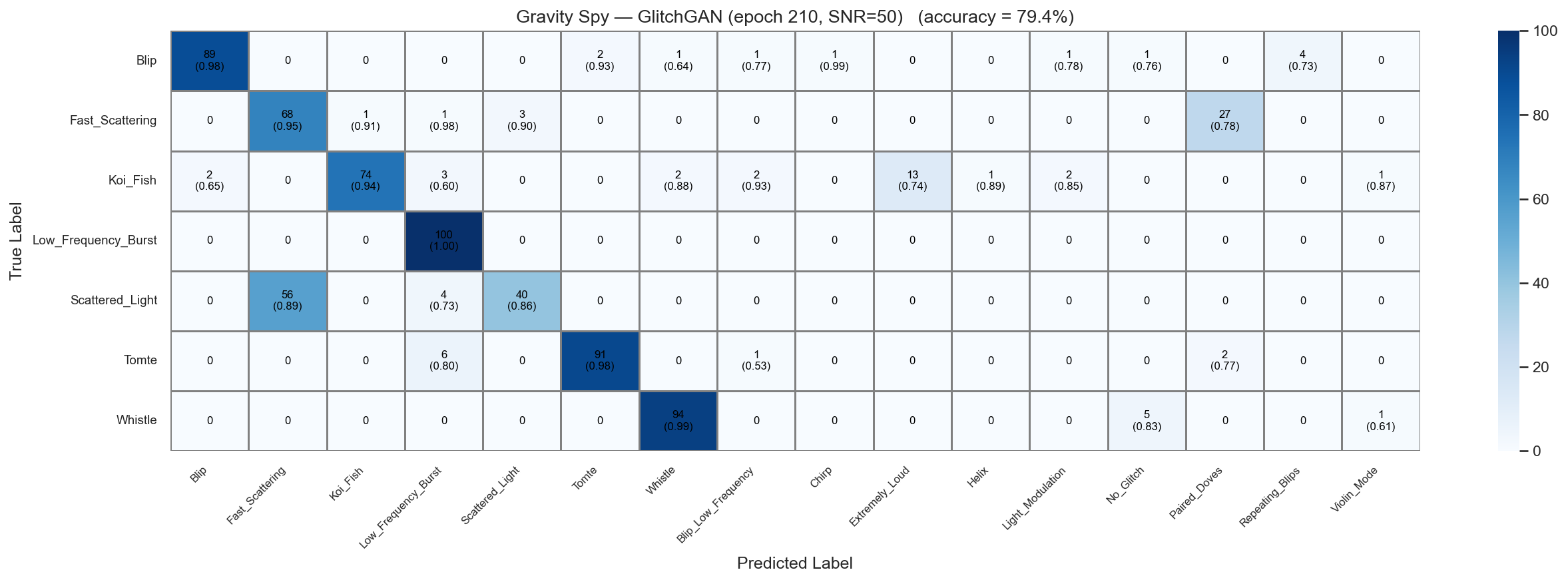

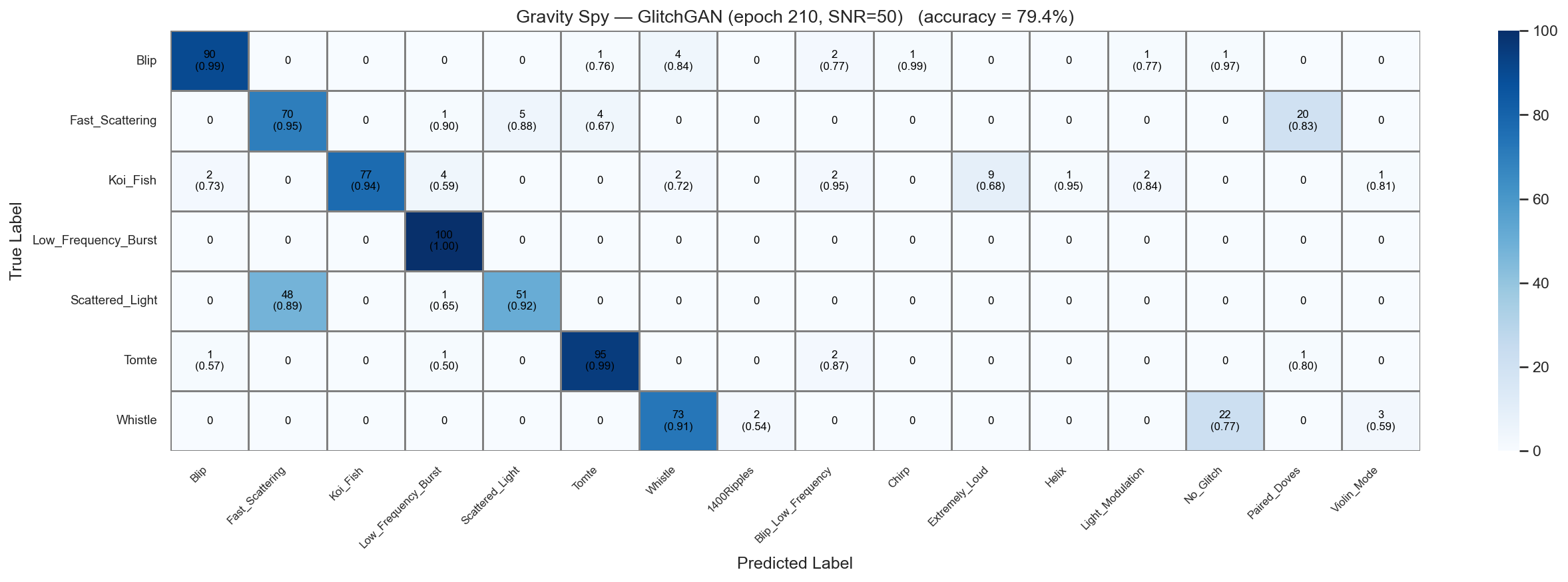

def plot_confusion(df, tag, save_name):
    if df is None or len(df) == 0:
        print(f'No results for {tag}'); return None
    df = df[df['pred_label'] != 'Error']
    if len(df) == 0:
        print(f'All errors for {tag}'); return None

    pred_all  = sorted(df['pred_label'].unique())
    for lbl in LABEL_ORDER:
        if lbl not in pred_all:
            pred_all.append(lbl)
    pred_cols = ([l for l in LABEL_ORDER if l in pred_all]
                 + [l for l in pred_all if l not in LABEL_ORDER])

    count_matrix = pd.DataFrame(0, index=LABEL_ORDER, columns=pred_cols)
    conf_accum   = {(t, p): [] for t in LABEL_ORDER for p in pred_cols}
    for t, p, c in zip(df['true_label'], df['pred_label'], df['confidence']):
        if t in LABEL_ORDER and p in pred_cols:
            count_matrix.loc[t, p] += 1
            conf_accum[(t, p)].append(c)

    annot = pd.DataFrame('', index=LABEL_ORDER, columns=pred_cols)
    for t in LABEL_ORDER:
        for p in pred_cols:
            n = count_matrix.loc[t, p]
            annot.loc[t, p] = '0' if n == 0 else f"{n}\n({np.mean(conf_accum[(t,p)]):.2f})"

    total = count_matrix.values.sum()
    acc   = np.trace(count_matrix.values) / total if total > 0 else 0.0

    fig_w = max(10, len(pred_cols) * 1.1)
    sns.set(style='whitegrid', font_scale=1.0)
    fig, ax = plt.subplots(figsize=(fig_w, 6))
    sns.heatmap(count_matrix, annot=annot, fmt='', cmap='Blues', cbar=True,
                linewidths=0.5, linecolor='gray',
                annot_kws={'size': 8, 'color': 'black'}, ax=ax)
    ax.set_xlabel('Predicted Label', fontsize=12)
    ax.set_ylabel('True Label', fontsize=12)
    ax.set_title(f'Gravity Spy \u2014 {tag}   (accuracy = {acc:.1%})', fontsize=13)
    plt.xticks(rotation=45, ha='right', fontsize=8)
    plt.yticks(rotation=0, fontsize=9)
    plt.tight_layout()
    fig.savefig(PLOTS_DIR / f'{save_name}.pdf', bbox_inches='tight')
    buf = io.BytesIO()
    fig.savefig(buf, format='png', dpi=150, bbox_inches='tight')
    plt.close(fig)
    buf.seek(0)
    ipy_display(IPyImage(buf.read()))
    print(f'{tag} accuracy: {acc:.3f}')
    return acc

/opt/homebrew/Caskroom/miniforge/base/envs/cdvgan/lib/python3.11/site-packages/gwpy/time/_ligotimegps.py:42: UserWarning: Wswiglal-redir-stdio:

SWIGLAL standard output/error redirection is enabled in IPython.
This may lead to performance penalties. To disable locally, use:

with lal.no_swig_redirect_standard_output_error():
    ...

To disable globally, use:

lal.swig_redirect_standard_output_error(False)

Note however that this will likely lead to error messages from
LAL functions being either misdirected or lost when called from
Jupyter notebooks.

To suppress this warning, use:

import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")
import lal

  from lal import LIGOTimeGPS
PyCBC.libutils: pkg-config call failed, setting NO_PKGCONFIG=1
INFO:panoptes_client:libmagic not operational, likely due to lack of shared libraries. Media MIME type determination will be based on file extensions.

# Fetch and whiten noise — identical to evaluation2
print('Fetching open data and whitening...')
noise = TimeSeries.fetch_open_data(IFO, GW_START, GW_END, sample_rate=SRATE)
noise = noise.to_pycbc()
white_noise, psd = noise.whiten(
    len(noise) / (2 * SRATE),
    len(noise) / (4 * SRATE),
    remove_corrupted=False,
    return_psd=True,
)
print(f'white_noise: {len(white_noise)} samples  dtype: {white_noise.dtype}')

Fetching open data and whitening...
white_noise: 163840 samples  dtype: float64

df = classify_signals(
    generated_signals, labels, white_noise, noise,
    label_order=LABEL_ORDER,
    tag=f'GlitchGAN (epoch 210, SNR={SNR_TARGET})',
)
df.to_csv(PLOTS_DIR / 'gspy_results.csv', index=False)
print(f'Saved: {PLOTS_DIR / "gspy_results.csv"}')

Saved: /Users/tomdooney/Documents/Work/Projects/glitchgan/evaluation_plots/gspy_results.csv

acc = plot_confusion(df, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.700

sys.path.insert(0, PATH_TO_REPO)

from gwpy.timeseries import TimeSeries
from gravityspy.classify import classify
import gravityspy.ml.labelling_test_glitches as _lgt

warnings.filterwarnings('ignore')
for _log in ['gravityspy', 'gwpy', 'astropy', 'tensorflow']:
    logging.getLogger(_log).setLevel(logging.ERROR)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '3'

GSPY_PLOT_DIR = str(PLOTS_DIR / 'gspy_tmp')


def classify_signals(generated_signals, labels, white_noise, noise, label_order, tag):
    """Classify GlitchGAN signals using GravitySpy.
    Injection follows evaluation2 exactly: pycbc copy → pycbc += → gwpy TimeSeries.
    """
    ifo          = IFO
    srate        = SRATE
    init_time    = INIT_TIME
    channel_name = CHANNEL
    path_to_model = str(PATH_TO_MODEL)
    # snr_target   = SNR_TARGET

    shutil.rmtree(GSPY_PLOT_DIR, ignore_errors=True)
    os.makedirs(GSPY_PLOT_DIR, exist_ok=True)

    rows  = []
    total = NUM_CLASSIFY * len(label_order)
    with tqdm(total=total, desc=f'Classifying [{tag}]', unit='glitch') as pbar:
        for class_label in label_order:
            snr_target   = mean_snrs.get(class_label, SNR_TARGET)
            class_indices  = np.where(labels == class_label)[0]
            chosen_indices = np.random.choice(class_indices, NUM_CLASSIFY, replace=False)

            for idx in chosen_indices:
                glitch = generated_signals[idx].copy()
                glitch = whitened_snr_scaling(glitch, snr_target)

                len_glitch = len(glitch)
                length     = noise.shape[-1]
                t_inj      = 0.5 * length / srate
                id_start   = int((t_inj * srate / length) * len(white_noise)) - len_glitch // 2

                injected_noise = white_noise.copy()
                injected_noise[id_start:id_start + len_glitch] += glitch

                glitch_series = TimeSeries(
                    injected_noise, t0=init_time, sample_rate=srate, name=ifo
                )

                try:
                    result = classify(
                        event_time=EVENT_TIME,
                        channel_name=channel_name,
                        path_to_cnn=path_to_model,
                        timeseries=glitch_series,
                        plot_directory=GSPY_PLOT_DIR,
                    )
                    rows.append({
                        'true_label': class_label,
                        'pred_label': result['ml_label'].value[0],
                        'confidence': result['ml_confidence'].value[0],
                    })
                except Exception as e:
                    print(f'  \u26a0 {class_label}[{idx}]: {type(e).__name__}: {e}')
                    rows.append({'true_label': class_label, 'pred_label': 'Error', 'confidence': 0.0})
                pbar.update(1)

    return pd.DataFrame(rows)


def plot_confusion(df, tag, save_name):
    if df is None or len(df) == 0:
        print(f'No results for {tag}'); return None
    df = df[df['pred_label'] != 'Error']
    if len(df) == 0:
        print(f'All errors for {tag}'); return None

    pred_all  = sorted(df['pred_label'].unique())
    for lbl in LABEL_ORDER:
        if lbl not in pred_all:
            pred_all.append(lbl)
    pred_cols = ([l for l in LABEL_ORDER if l in pred_all]
                 + [l for l in pred_all if l not in LABEL_ORDER])

    count_matrix = pd.DataFrame(0, index=LABEL_ORDER, columns=pred_cols)
    conf_accum   = {(t, p): [] for t in LABEL_ORDER for p in pred_cols}
    for t, p, c in zip(df['true_label'], df['pred_label'], df['confidence']):
        if t in LABEL_ORDER and p in pred_cols:
            count_matrix.loc[t, p] += 1
            conf_accum[(t, p)].append(c)

    annot = pd.DataFrame('', index=LABEL_ORDER, columns=pred_cols)
    for t in LABEL_ORDER:
        for p in pred_cols:
            n = count_matrix.loc[t, p]
            annot.loc[t, p] = '0' if n == 0 else f"{n}\n({np.mean(conf_accum[(t,p)]):.2f})"

    total = count_matrix.values.sum()
    acc   = np.trace(count_matrix.values) / total if total > 0 else 0.0

    fig_w = max(10, len(pred_cols) * 1.1)
    sns.set(style='whitegrid', font_scale=1.0)
    fig, ax = plt.subplots(figsize=(fig_w, 6))
    sns.heatmap(count_matrix, annot=annot, fmt='', cmap='Blues', cbar=True,
                linewidths=0.5, linecolor='gray',
                annot_kws={'size': 8, 'color': 'black'}, ax=ax)
    ax.set_xlabel('Predicted Label', fontsize=12)
    ax.set_ylabel('True Label', fontsize=12)
    ax.set_title(f'Gravity Spy \u2014 {tag}   (accuracy = {acc:.1%})', fontsize=13)
    plt.xticks(rotation=45, ha='right', fontsize=8)
    plt.yticks(rotation=0, fontsize=9)
    plt.tight_layout()
    fig.savefig(PLOTS_DIR / f'{save_name}.pdf', bbox_inches='tight')
    buf = io.BytesIO()
    fig.savefig(buf, format='png', dpi=150, bbox_inches='tight')
    plt.close(fig)
    buf.seek(0)
    ipy_display(IPyImage(buf.read()))
    print(f'{tag} accuracy: {acc:.3f}')
    return acc

# Fetch and whiten noise — identical to evaluation2
print('Fetching open data and whitening...')
noise = TimeSeries.fetch_open_data(IFO, GW_START, GW_END, sample_rate=SRATE)
noise = noise.to_pycbc()
white_noise, psd = noise.whiten(
    len(noise) / (2 * SRATE),
    len(noise) / (4 * SRATE),
    remove_corrupted=False,
    return_psd=True,
)
print(f'white_noise: {len(white_noise)} samples  dtype: {white_noise.dtype}')

Fetching open data and whitening...
white_noise: 163840 samples  dtype: float64

df = classify_signals(
    generated_signals, labels, white_noise, noise,
    label_order=LABEL_ORDER,
    tag=f'GlitchGAN (epoch 210, SNR={SNR_TARGET})',
)
df.to_csv(PLOTS_DIR / 'gspy_results_mean_snr_2.csv', index=False)
print(f'Saved: {PLOTS_DIR / "gspy_results_mean_snr_2.csv"}')

Saved: /Users/tomdooney/Documents/Work/Projects/glitchgan/evaluation_plots/gspy_results_mean_snr_2.csv

acc = plot_confusion(df, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm_mean_snr')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.789

acc = plot_confusion(df, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm_mean_snr')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.794

One more

acc = plot_confusion(df, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm_mean_snr')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.793

df = classify_signals(
    generated_signals, labels, white_noise, noise,
    label_order=LABEL_ORDER,
    tag=f'GlitchGAN (epoch 210, SNR={SNR_TARGET})',
)
df.to_csv(PLOTS_DIR / 'gspy_results.csv', index=False)
print(f'Saved: {PLOTS_DIR / "gspy_results_higher_snr.csv"}')

Saved: /Users/tomdooney/Documents/Work/Projects/glitchgan/evaluation_plots/gspy_results_higher_snr.csv

acc = plot_confusion(df, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm_mean_snr_higher_snr')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.794

df_loaded = pd.read_csv(PLOTS_DIR / 'gspy_results_mean_snr_2.csv')
print(f'Loaded {len(df_loaded)} rows')
df_loaded.head()

Loaded 700 rows

	true_label	pred_label	confidence
0	Blip	Blip	0.999997
1	Blip	Blip	0.999983
2	Blip	Whistle	0.951866
3	Blip	Blip	0.999987
4	Blip	Blip	0.999997

import os
# Jupyter kernels launched by VS Code often inherit a stripped PATH that omits
# the TeX bin directory, even when `latex` is reachable from the shell.
if '/Library/TeX/texbin' not in os.environ.get('PATH', ''):
    os.environ['PATH'] = '/Library/TeX/texbin:' + os.environ.get('PATH', '')

import scienceplots  # noqa: F401 — registers the 'science' style

def _tex(s):
    return s.replace('_', r'\_').replace('%', r'\%')

def plot_confusion_from_csv(df, tag, save_name):
    df = df[df['pred_label'] != 'Error'].copy()
    if len(df) == 0:
        print('No valid rows'); return None

    pred_all = sorted(df['pred_label'].unique())
    for lbl in LABEL_ORDER:
        if lbl not in pred_all:
            pred_all.append(lbl)
    pred_cols = [l for l in LABEL_ORDER if l in pred_all] + [l for l in pred_all if l not in LABEL_ORDER]

    count_matrix = pd.DataFrame(0, index=LABEL_ORDER, columns=pred_cols)
    conf_accum   = {(t, p): [] for t in LABEL_ORDER for p in pred_cols}
    for t, p, c in zip(df['true_label'], df['pred_label'], df['confidence']):
        if t in LABEL_ORDER and p in pred_cols:
            count_matrix.loc[t, p] += 1
            conf_accum[(t, p)].append(c)

    annot = pd.DataFrame('', index=LABEL_ORDER, columns=pred_cols)
    for t in LABEL_ORDER:
        for p in pred_cols:
            n = count_matrix.loc[t, p]
            annot.loc[t, p] = '0' if n == 0 else f"{n}\n({np.mean(conf_accum[(t, p)]):.2f})"

    total = count_matrix.values.sum()
    acc   = np.trace(count_matrix.values) / total if total > 0 else 0.0

    with plt.style.context(['science']):
        fig_w = max(10, len(pred_cols) * 1.1)
        fig, ax = plt.subplots(figsize=(fig_w, 6))

        cm_plot = count_matrix.rename(index=_tex, columns=_tex)
        sns.heatmap(cm_plot, annot=False, cmap='Blues', cbar=True,
                    linewidths=0.5, linecolor='gray', ax=ax)

        for i, true_lbl in enumerate(LABEL_ORDER):
            for j, pred_lbl in enumerate(pred_cols):
                color = 'white' if true_lbl == pred_lbl else 'black'
                ax.text(j + 0.5, i + 0.5, annot.loc[true_lbl, pred_lbl],
                        ha='center', va='center', fontsize=12, color=color)

        ax.set_xlabel('Predicted Label', fontsize=18)
        ax.set_ylabel('True Label', fontsize=18)
        # ax.set_title(rf'Gravity Spy --- {_tex(tag)}   (accuracy = {acc * 100:.1f}\%)', fontsize=13)
        plt.xticks(rotation=45, ha='right', fontsize=13)
        plt.yticks(rotation=0, fontsize=13)
        plt.tight_layout()
        fig.savefig(PLOTS_DIR / f'{save_name}.pdf', bbox_inches='tight')
        buf = io.BytesIO()
        fig.savefig(buf, format='png', dpi=150, bbox_inches='tight')
        plt.close(fig)

    buf.seek(0)
    ipy_display(IPyImage(buf.read()))
    print(f'{tag} accuracy: {acc:.3f}')
    return acc

plot_confusion_from_csv(df_loaded, f'GlitchGAN (epoch 210, SNR={SNR_TARGET})', 'gspy_cm_final')

GlitchGAN (epoch 210, SNR=50) accuracy: 0.793

np.float64(0.7928571428571428)
